LED Full Cut-off Wallpack Light with Dusk to Dawn Photocell 28W 42W 56W 70W 100W 125W Watt Tunable 3000K/4000K/5000K Color Tunable 120-277V 0-10V Dimmable
Price range: $85.00 through $94.00
Download Spec Sheet
Shipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment
LED Full Cut-off Wallpack Light with Dusk to Dawn Photocell 28W 42W 56W 70W 100W 125W Watt Tunable 3000K/4000K/5000K Color Tunable 120-277V 0-10V Dimmable
LED Full Cut-off Wallpack Light Description:

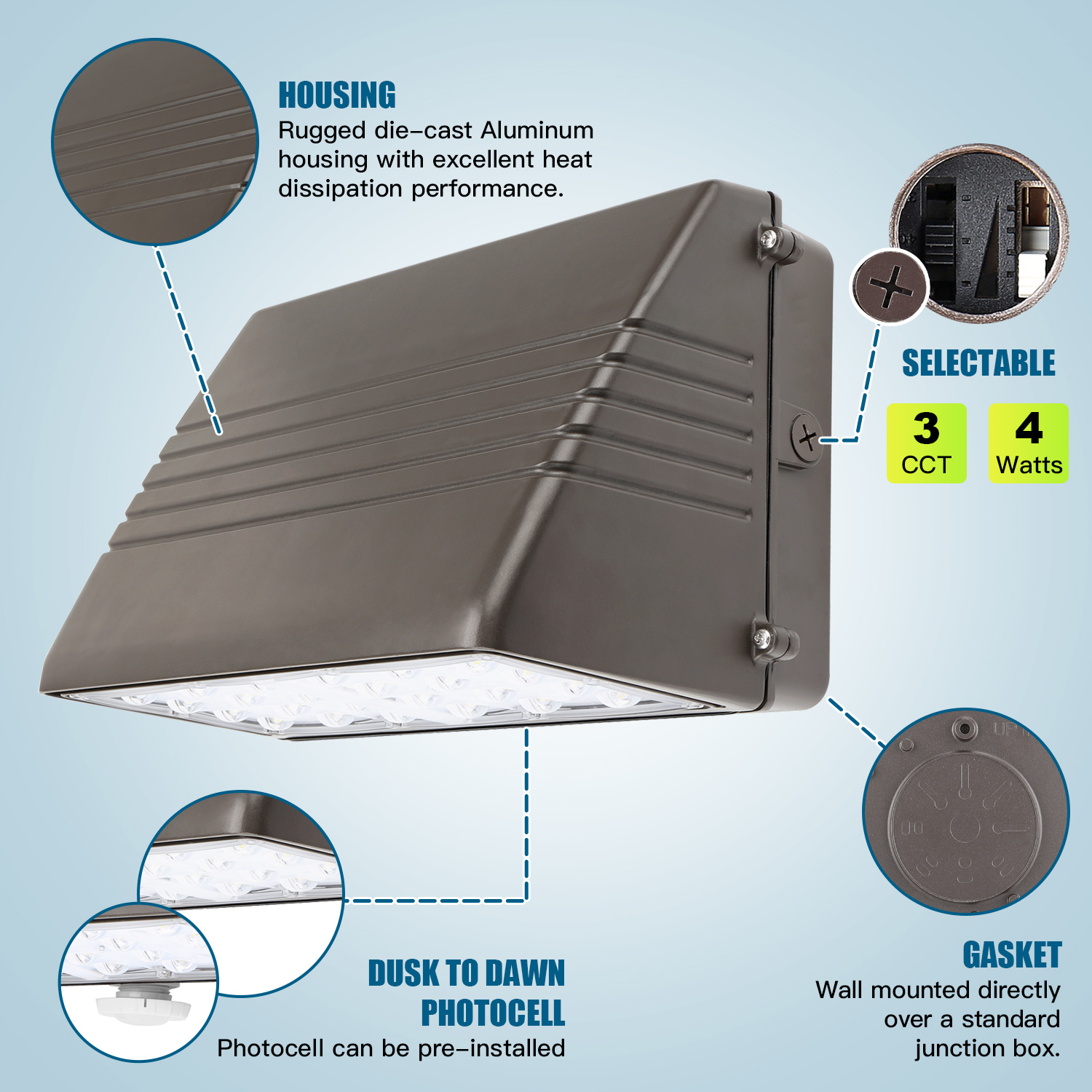

- Rugged cast-aluminum housing with bronze polyester powder paint for outdoor applications.
- Switchable color temperature 3000K/4000K/5000K.
- Adjustable lumen output with four lumen settings 100%, 80%, 60%, 40%
- Universal 120-277 VAC or 120-347VAC input voltage.
- 0-10V dimming standard for a dimming range of 100% to 10%.
- Both drivers have a power factor >90%,THD <20%, 6KV surge protection.
- Operating Temperature Range: -40°C to 45°℃ (-40’F_+ 113°F).
- Estimated 50,000-hour LED lifespan based on lES LM-80 results and TM-21 calculations.
- UL cUL wet location listed, 5 Years limited warranty.
LED Wall Pack Lights Spec:
Item | LED Full Cut-off Wall Pack Light | |
SKU | CL-MFWP-70W-CCT-P | CL-MFWP-125W-CCT-P |
Power | 70W/56W/42W/28W tunable | 125W/100W/75W/50W tunable |
Replacement | MH/HPS 50-300W | MH/HPS 100-500W |
Lumen Output | 10200LM | 18000LM |
Color Temperature | 3000K/4000K/5000K tunable | |
Working Voltage | 120-277V AC 50/60HZ | |
CRI | >80Ra | |
THD | <20% | |
Diffuser | PC cover | |
PF | >0.9 | |
Photocell | Built-in photocell | |
Driver | UL Driver | |
Shell | Die-casting aluminum | |
Shell Finish Color | Dark bronze | |
Waterproof | IP65 waterproof | |
Working Temperature | -40℉ – 113℉ | |
Working Humidity | 20%-90% | |
Safety Certificate | UL cUL CE RoHS | |
Energy Saving Certificate | DLC | |
Lifespan | Min50000hours | |
Warranty | 5 years | |
Special Offer Link:
Buy led emergency wall pack light with battery backup
Buy adjustable led full cut-off wall pack light
Buy half cut-off led wall pack light with built-in photocell
Buy 100w 480v led wall pack light
Any question please contact us below:
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Watt Tunable |
70W/56W/42W/28W tunable ,125W/100W/75W/50W tunable |
