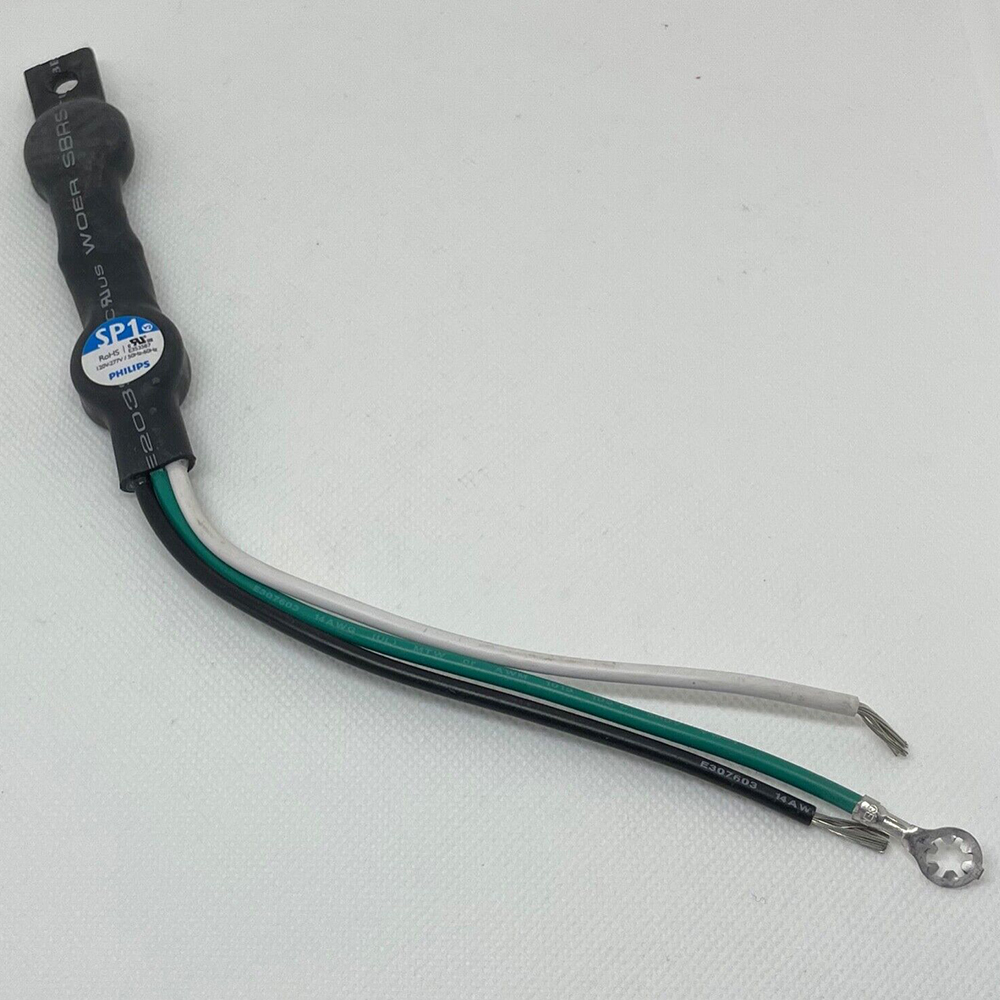

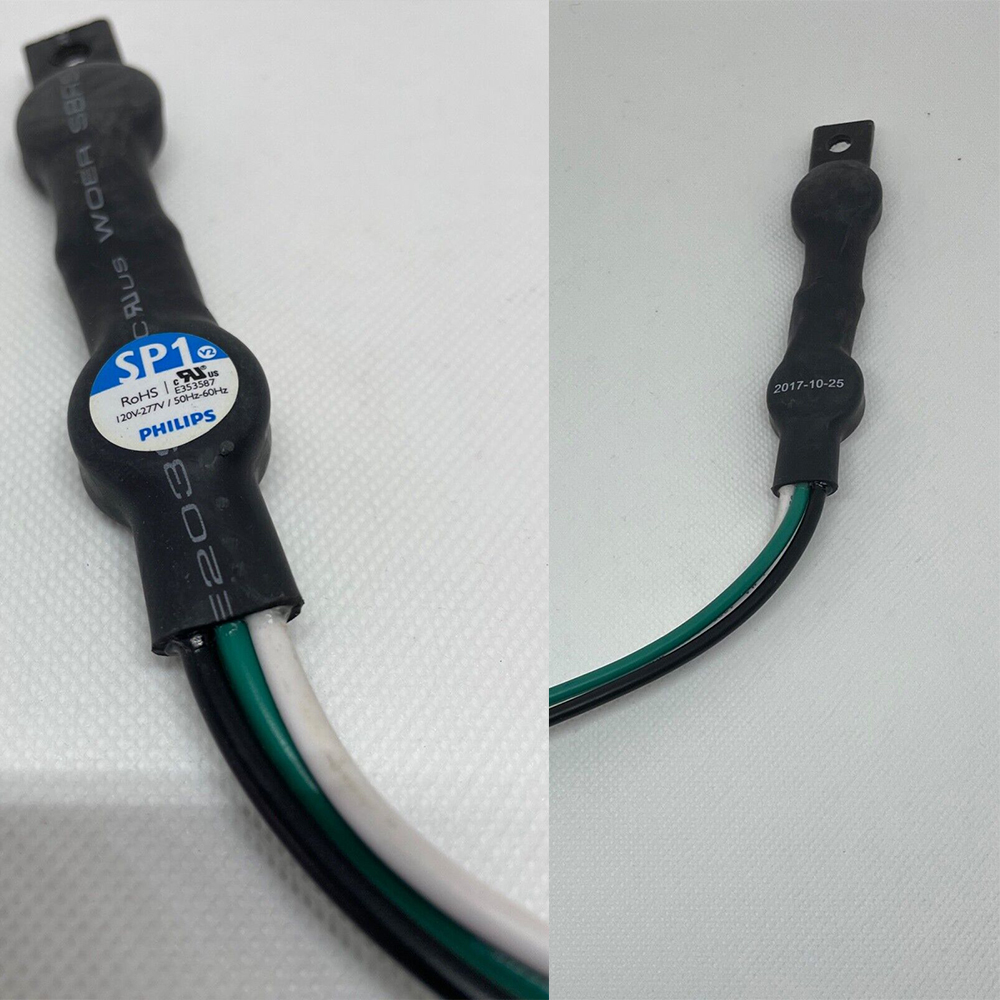

Philips SP1 10KA 120V-277V LED Surge Protectors for Outdoor LED Luminaires, Type 5 Single Phase Surge Protective Device – Category C Outdoor Enclosure

Adapted to SSL outdoor lighting, the Philips SP1 surge protection device provides single phase protection for line/neutral, line/ground
and neutral/ground in accordance with IEEE C62.41 2002 C High.

The SP1 small size corresponds to the current design requirements for the new technology luminaires, like a LED light engine
in outdoor lighting.

LED Surge Protector Spec:

• SP1 Uc 120V-277V
• 10KA/KV ratings(8/20μs standard wave)

• Surge location rated Category C
• Operating ambient temperature: -35°C~+85°C
• Storage Temperature and Humidity Range: -35°C~+85°C
• 120-277VAC mains 14 Gauges stranded wires, 105°C, 600V

• Maximum Continuous Operating Voltage & Max Discharge Current: 320 VAC, 20 kA(8/20μs)
• Agency Approval: UL1449, Type 5
• Up to IP65 rated enclosure for wet locations

Surge Protective Device Feature:

• Works with LED drivers, fluorescent ballasts, HID ballasts, and induction lighting ballasts.
• These devices protect Line-Neutral, Line-Ground, and Neutral-Ground in accordance with IEEE/ANSI 62.41.2
• Thermally protected for field installation
• For use with 120-277V LED drivers
• 10KA/KV ratings
• Up to IP65 rated enclosure for wet locations
• High temperature / flameproof enclosure
  (105°C max surface rating)

Applications

• Outdoor and LED Lighting
• Roadway lighting
• Traffic lighting
• Digital signage
• Wash wall lighting
• Parking garage/lot lighting
• Flood lighting
• Tunnel lighting
• Street light
